Solution: Below is the Solution of this Solid Mechanics problem. You may download the solution:

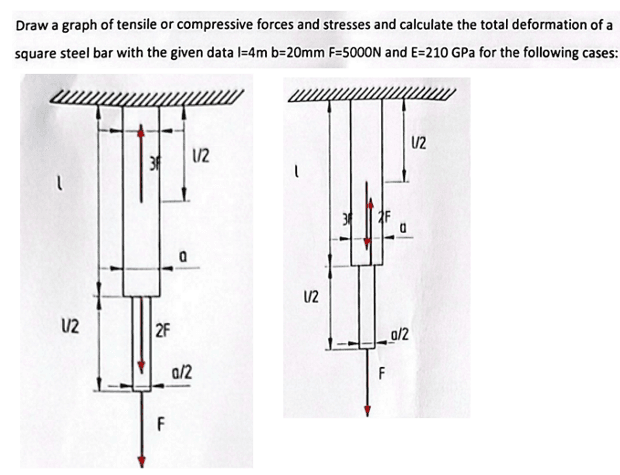

Problem 4: Draw a graph of tensile or compressive forces and stresses and calculate the total deformation of a square steel bar with the given data l=4m, b=20mm, F=5000N and E=210Gpa for the following case:
