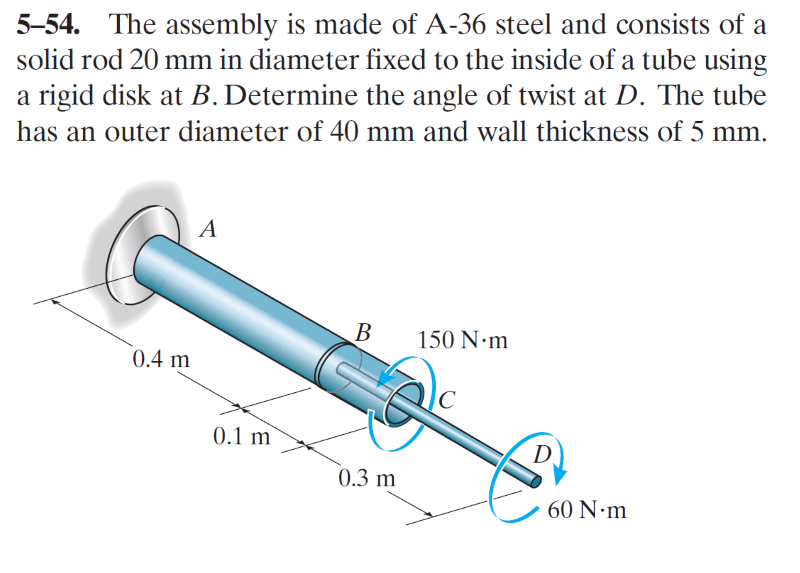

5-54. The assembly is made of A-36 steel and consists of a solid rod 20 mm in diameter fixed to the inside of a tube using a rigid disk at B. Determine the angle of twist at D. The tube has an outer diameter of 40 mm and wall thickness of 5 mm.
Solution: Below is the solution of this problem. you can download the solution.
