More structural terminology…

Strike

  • 90° from the dip direction

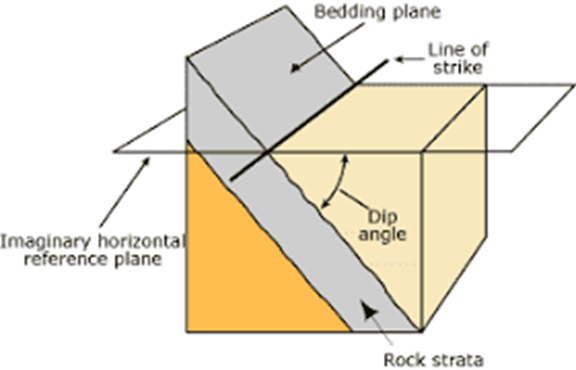

  • Definition:  intersection of a tilted plane with a horizontal plane

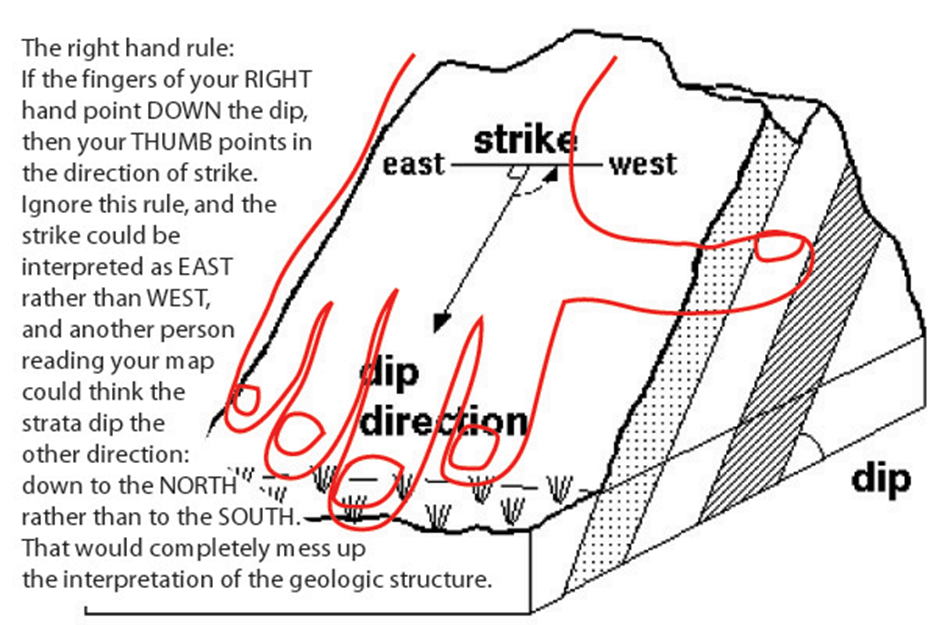

  • Right-hand rule: Place your palm on the plane with your fingers pointing downslope.  Your thumb points in the direction of strike.
