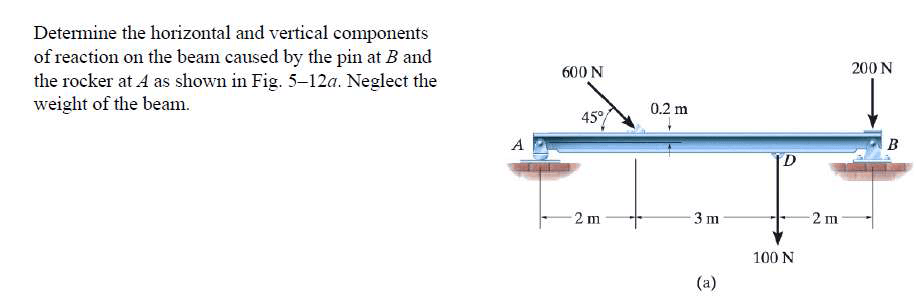

Civil Thinking › support reactions in beams SOLUTON OF: Determine the horizontal and vertical components of reactions on the beam caused by the pin at B and the rocker at A as shown in Fig. 5-12a. Neglect the weight of the beam.

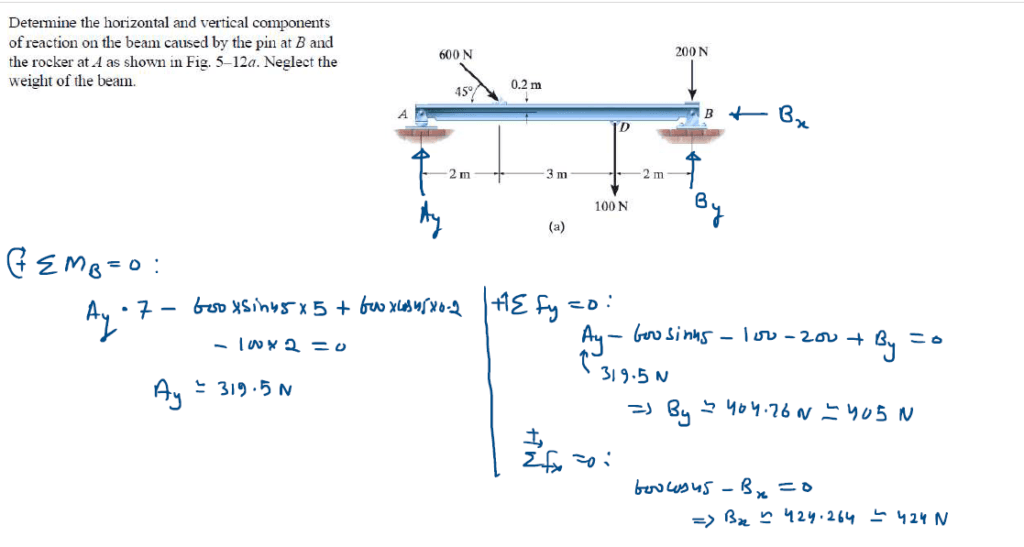

Solution: Below is the solution of this support reaction problem of simply supported bam carrying an inclined load:

SOLUTON OF: Determine the horizontal and vertical components of reactions on the beam caused by the pin at B and the rocker at A as shown in Fig. 5-12a. Neglect the weight of the beam.
